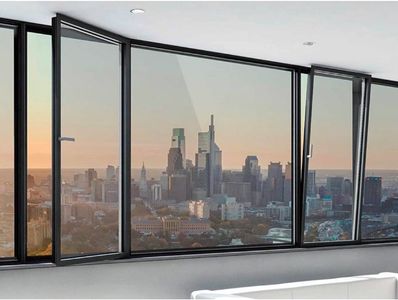

LP80T Tilt and Turn Window

Product Overview

The LP80T Series Tilt and Turn Window combines European design with North American performance standards. Its dual-function operation allows the sash to tilt inward for secure ventilation or swing open for full access and easy cleaning. Built with a thermally broken aluminum frame and double or triple glazing options, it delivers outstanding energy efficiency, airtight performance, and noise reduction.


Certified to AAMA/WDMA/CSA CW-PG40 and Canada ENERGY STAR standards, the LP80T is engineered for long-term durability and superior comfort in modern residential and commercial buildings.

Back to Windows by Type

Specifications

Tested size: 47.24"x70.87" (1200mmx1800mm) -Type DAW

Technical Data

  • Frame Depth: 3.15" (80mm)
  • Sash Thickness: 2.20" (56mm)
  • Glass Groove Thickness: 1.60" (40.7mm)
  • Glazing type: Triple Glazed
  • Coating: Two Low-E coating
  • Gas Fill: Argon (12mm cavities)

Performance Data

  • Thermal Insulation (U-Factor): 0.29 BTU/hr·ft²·°F
  • Solar Heat Gain Coefficient (SHGC): 0.25
  • Air Infiltration/Exfiltration: 0.004CFM/ft²
  • Water Penetration Resistance: 18.8 psf
  • Positive Design Pressure: 40.10 psf
  • Negative Design Pressure: -40.10 psf
  • Visible Transmittance: 0.41
  • Energy Rating: 19
  • Sound Transmission (STC/OITC): 44/37
