LPS80T Crank Window

Product Summary

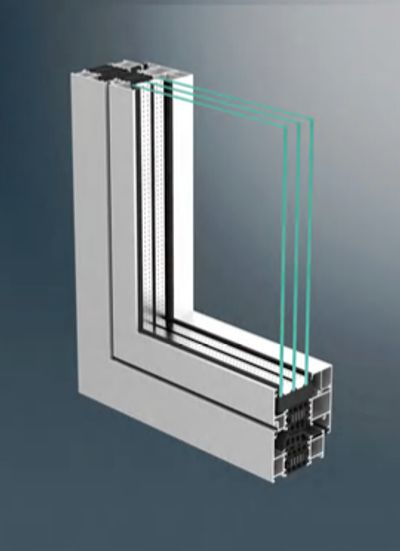

The LPS80T Crank Casement Window delivers exceptional energy efficiency and thermal insulation with its triple-pane design and precision-engineered aluminum profile. Built to withstand the harshest climates, it provides reliable performance, durability, and quiet comfort. Designed for modern projects, the SP80T combines cutting-edge materials with superior insulation to meet the highest standards of efficiency and strength.

back to windows by type

Specifications

Technical Data

Visible Frame Width (outside): 1 3/16" (30mm)
Profile Depth: 3.11" (79 mm)
Depth of Glass Groove: 1 1/16" (27mm)
Glass Thickness: 2.4" (61mm)

Performance Data

Thermal Insulation (U-Value): ≤ 0.25 BTU/hr·ft²·°F
Acoustic Performance: ≤ 45 dB
Air Tightness: 0.4 m³/(m·h)
Water Penetration Resistance: 18.8 psf
Wind Load Resistance: ≥10.44 psf
